Détails sur le produit:
|
| Niveau automatique: | Automatique | Tension: | AC100-120V / AC220-240V |
|---|---|---|---|
| Type de tissu approprié: | Polyester et coton | Traitement des médias: | Rouler pour rouler + alimentation automatique + rollage automatique |
| Type d'encre: | Encre sublimation, encre pigmentaire | Couleur et page: | Multicolore |
| Usage: | Terrain de publicité intérieure et extérieur | OS compatible: | Windows 7 et Windows 10 |
| Sofware: | ONYX | Puissance de chauffage: | 6 kW |

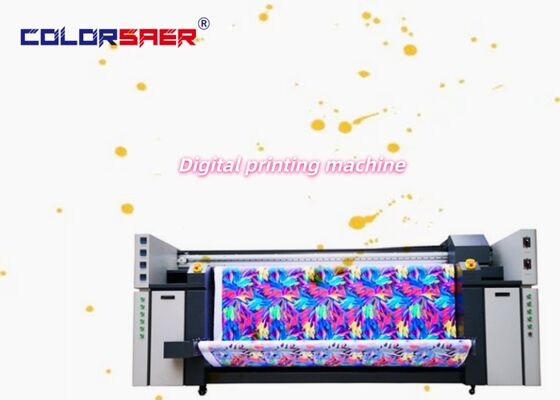

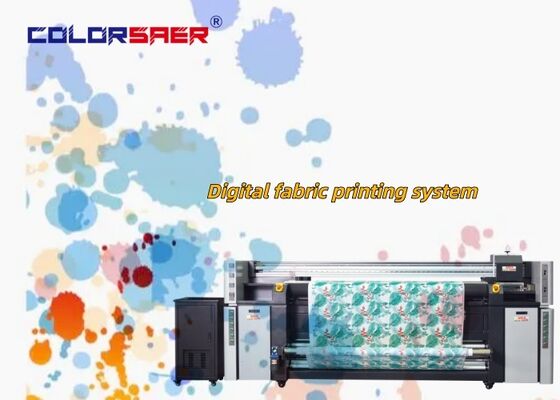

Product name:Factory High Quality Printer 2m/3.2m i3200 Print Head Digital fabric printing system for polyester & cotton
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed:
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Main Features :
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Advantages:
Application industry:
