Détails sur le produit:
|
| Sofware: | ONYX | Chauffage: | 6 kW |
|---|---|---|---|
| Note automatique: | Automatique | Tension: | AC100-120V / AC220-240V |
| Type de tissu approprié: | Polyester et coton | Traitement des médias: | Rouler pour rouler + alimentation automatique + rollage automatique |
| Type d'encre: | Encre sublimation, encre pigmentaire | Couleur et page: | MULTICOLORE |
| Usage: | Terrain de publicité intérieure et extérieur | OS compatible: | Windows 7 et Windows 10 |

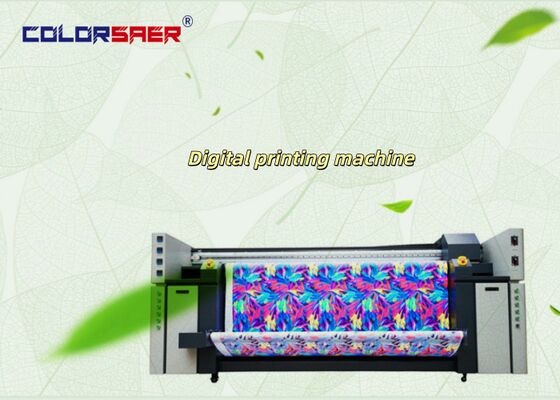

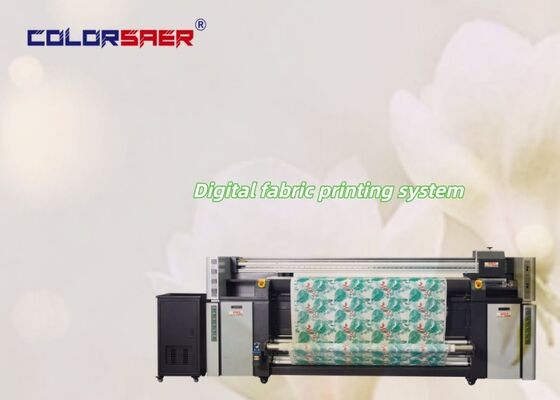

Product name:Factory supply Multifunctional Cotton & Polyester Textile Printing System Fabric Plotter with Far Infrared Heater
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Advantages:
Application industry:
